Pepperl Fuchs KFD2-EB2 Power Feed Module

Pepperl Fuchs KFD2-EB2 Power Feed Module

Features

Pepperl fuchs KFD2-EB2 Power Feed Module

• Interface for Power Rail
• Supply current ≤ 4 A
• Replaceable fuse
• Relay contact output, reversible
• LED status indication
Pepperl fuchs KFD2-EB2 Power Feed Module

Function

The power feed module interfaces 24 V DC power to the Power Rail at a maximum current of 4 A. The twin input terminals allow for daisy-chaining of supply (max. 10 A).A green LED on the front of the unit indicates that power is on,and a red LED illuminates during error conditions.

Pepperl fuchs KFD2-EB2 Power Feed Module
In the event of a field wiring or barrier fault from any barrier on the Power Rail, the integral collective error messaging relay alerts the controller via a single discrete I/O point.This relay can be configured as normally open or normally closed.
In the sense of functional safety (SIL) the device provides no dangerous failures. Thereby the safe condition of the supplied barrier must be defined as the powerless state. Thus the device will not influence the safety calculation or the SIL value.This device is compatible with all versions of the Power Rail.

Pepperl fuchs KFD2-EB2 Power Feed Module

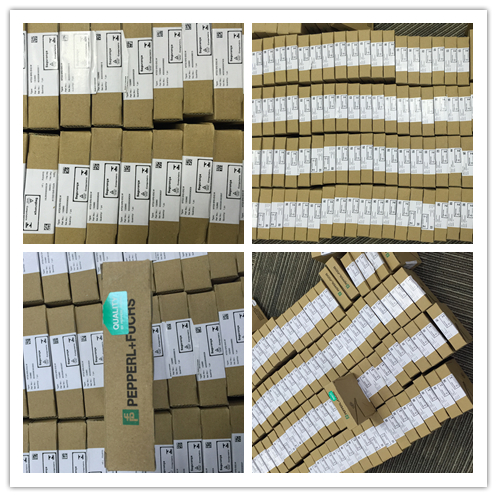

Large quantity of Pepperl+Fuchs Isolated Barriers K-Systems on stock
